The Complete Guide to Aluminum Machining: Techniques, Tools&Tips

I. Introduction to Aluminum Machining

Aluminum machining is the process of cutting, drilling, milling, and shaping aluminum material into various forms and sizes, such as parts, components, and structures. Aluminum is a widely used material in many industries, including aerospace, automotive, electronics, and construction, due to its lightweight, strength, corrosion resistance, and other desirable properties.

A. Overview of Aluminum Material

Aluminum is a silvery-white, soft, and ductile metal with an atomic number of 13 and a symbol of Al. It is one of the most abundant elements in the earth’s crust, making up about 8% of the total weight. Aluminum was discovered in 1825 by Danish physicist Hans Christian Oersted and refined in 1827 by German chemist Friedrich Wöhler.

B. Properties of Aluminum

Aluminum has many unique and beneficial properties that make it a popular material for various applications, such as:

C. Importance of Aluminum Machining

Aluminum machining plays a critical role in many industries, as it is a versatile and cost-effective material that requires precise and efficient shaping to meet various requirements. Aluminum machining enables manufacturers to produce high-quality and complex parts and components that meet tight tolerances, designs, and specifications. Aluminum machining also helps to minimize production costs, lead times, and tool wear, while maximizing productivity, consistency, and performance.

II. Basic Machining Processes for Aluminum

There are several basic machining processes used to cut, shape, and form aluminum material into the desired geometry, including turning, milling, drilling, and grinding.

A. Turning

Aluminum turning is the process of rotating a cylindrical or conical aluminum workpiece against a cutting tool that moves along the workpiece to remove material and create a finished shape. Turning can be performed on a lathe machine, which holds the workpiece in place and feeds the cutting tool to the material. Aluminum turning is suitable for making circular or curved parts, such as shafts, bushings, and bearings.

B. Milling

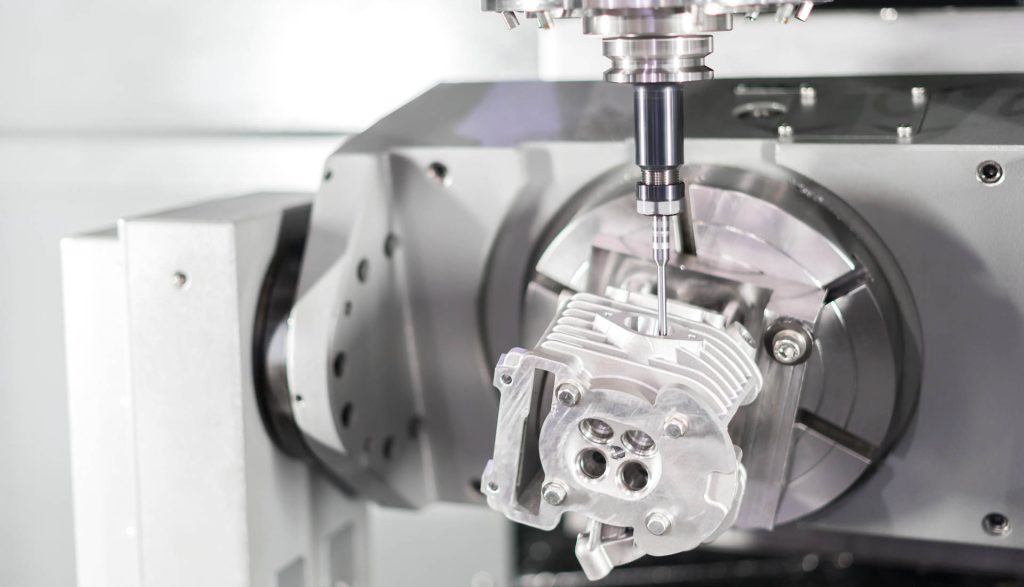

Aluminum milling is the process of using a rotating cutting tool to remove material from a flat or curved aluminum workpiece to create a precise shape or surface feature. Milling can be performed using a range of machines, including vertical and horizontal mills, CNC milling machines, and machining centers. Aluminum milling is ideal for producing intricate and complex parts, such as brackets, housings, and panels.

C. Drilling

Aluminum drilling is the process of creating holes in an aluminum workpiece using a drill bit or other cutting tool. Drilling can be performed manually or with a machine, such as a drill press or drilling center. Aluminum drilling can produce various hole sizes, shapes, and depths, depending on the drilling technique and tool used. Drilling is essential for making holes in aluminum parts, such as fasteners, pins, and spacers.

D. Grinding

Aluminum grinding is the process of using an abrasive wheel or belt to remove material from an aluminum surface or edge to create a smooth and precise finish. Grinding can be performed manually or with a machine, such as a grinder or belt sander. Aluminum grinding is suitable for removing sharp edges, smoothing rough surfaces, and refining welds in aluminum parts and components. Grinding is also used for creating precise dimensional tolerances and surface finishes.

III. Advanced Machining Techniques for Aluminum

While basic machining processes are essential for cutting, shaping, and finishing aluminum parts, advanced machining techniques can often deliver better precision, accuracy, and productivity. Here are some of the advanced machining techniques used for aluminum:

A. High-Speed Machining

High-speed machining (HSM) is a technique used to perform milling, drilling, and turning at high speeds and feeds while maintaining cutting performance and tool life. HSM requires a high-performance machine tool, a rigid workholding setup, and advanced cutting tools designed for high speeds and feeds. HSM is ideal for removing large volumes of aluminum material while maintaining tight tolerances and surface finishes. HSM benefits include faster cycle times, reduced tool wear, and higher productivity.

B. Micro-Machining

Micro-machining is a technique used to create ultra-small features and parts with high precision and accuracy. Micro-machining requires specialized cutting tools, machines, and techniques that can handle micro-scale operations. Micro-machining can produce microchannels, microfluidic devices, micro sensors, and other micro-precision components for various applications. Micro-machining can be performed using various processes, such as milling, turning, drilling, and laser cutting.

C. Electrochemical Machining

Electrochemical machining (ECM) is a non-traditional technique that uses an electrically conductive electrolyte and an electrode to remove material from an aluminum workpiece through a process of electrochemical dissolution. ECM can deliver high precision, surface finish, and productivity without generating heat or mechanical stress. ECM is ideal for producing complex shapes, micro-scale features, and hard-to-machine aluminum alloys without affecting the material properties.

D. Ultrasonic Machining

Ultrasonic machining (USM) is a technique that uses high-frequency mechanical vibrations to remove material from an aluminum workpiece, creating a precise shape and finish. USM requires a machine tool that can deliver high-frequency vibration to a cutting tool or abrasive slurry to create a micro-scale erosion effect on the material surface. USM is ideal for producing micro-holes, micro-cavities, and micro-features in aluminum parts and components without generating heat and deformation. USM can also produce high surface finishes and dimensional accuracy.

IV. Tools and Equipment for Aluminum Machining

Aluminum machining requires specialized tools and equipment that can handle the unique properties of the material, such as its low melting point, high ductility, and low chip formation resistance. Here are some of the essential tools and equipment used for aluminum machining:

A. Cutting Tools

Cutting tools used for aluminum machining must be selected based on the specific machining operation, material properties, and tool geometry. Some of the commonly used cutting tools for aluminum machining include carbide and HSS end mills, drills, taps, reamers, and inserts. Cutting tool coatings, such as TiN, TiAlN, and DLC, can improve tool life and performance by reducing friction and wear.

B. Workholding Devices

Workholding devices used for aluminum machining must provide secure and stable clamping of the workpiece while allowing for efficient chip evacuation and minimal deformation. Some of the commonly used workholding devices for aluminum machining include vises, chucks, fixtures, and collets. Vacuum chucks and magnetic chucks can also be used for certain applications.

C. Coolants and Lubricants

Coolants and lubricants used for aluminum machining are essential for reducing friction, dissipating heat, and lubricating the cutting tools and workpiece. Water-soluble coolants, such as emulsions and synthetics, are commonly used for aluminum machining, as they offer good cooling performance and corrosion resistance. Dry machining, which uses no coolant, can also be used for certain applications.

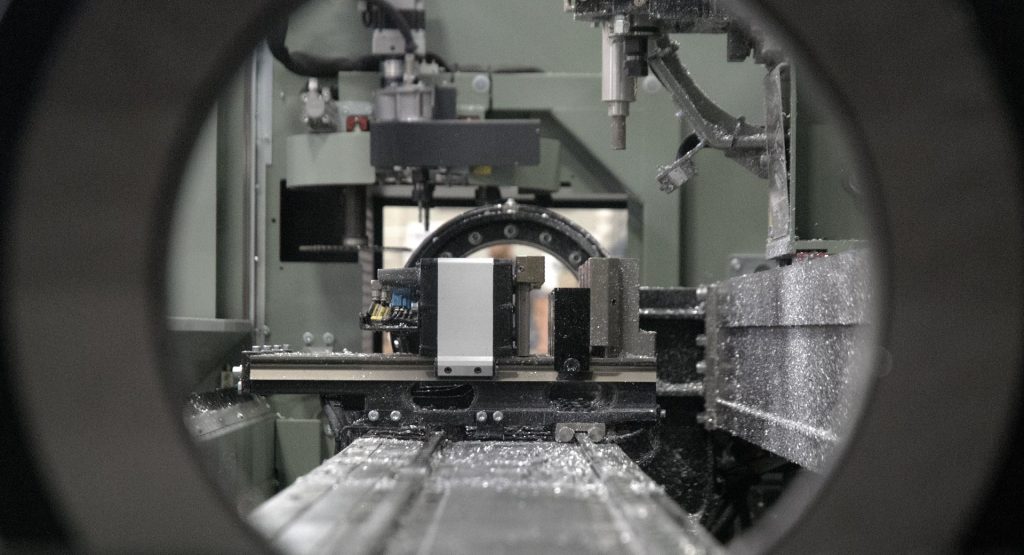

D. Machining Centers and Turning Centers

Machining centers and turning centers used for aluminum machining must be suitable for high-speed cutting, high feed rates, and high precision. Some of the commonly used machines for aluminum machining include vertical and horizontal machining centers, CNC milling machines, Swiss-style turning centers, and multi-axis turning centers. Machines with high spindle speeds, rapid traverse rates, and automatic tool changers can enhance productivity and efficiency.

V. Tips for Successful Aluminum Machining

Aluminum machining requires careful planning, preparation, and execution to ensure high-quality results and minimal costs. Here are some tips for successful aluminum machining:

A. Material Preparation

B. Cutting Parameters

C. Chip Control

D. Surface Finish

VI. Challenges and Solutions in Aluminum Machining

Aluminum machining poses several challenges that can affect the quality, efficiency, and economy of the process. Here are some of the common challenges in aluminum machining and their solutions:

A. Chip Formation and Disposal

Challenge: Aluminum chips can form long, stringy, and difficult-to-break chips that can clog the cutting tool, damage the workpiece, and cause safety hazards.
Solution: Use appropriate cutting parameters to control the chip formation, such as a high feed rate, low depth of cut, and appropriate cooling method. Use a suitable chip breaking technique, such as peck drilling, ramping, or trochoidal milling. Use a suitable chip evacuating technique, such as through-tool coolant or air blast, to remove the chips from the cutting zone efficiently. Dispose of the chips properly to avoid environmental and safety issues.

B. Tool Wear and Breakage

Challenge: Aluminum machining can cause rapid tool wear and breakage due to the material’s low melting point, ductility, and abrasive nature.
Solution: Use high-quality cutting tools made of hard and wear-resistant materials, such as carbide and HSS. Use appropriate cutting parameters, such as a high spindle speed, low depth of cut, and appropriate cooling method. Use a suitable tool coating or surface treatment, such as TiN, TiAlN, or DLC, to improve tool life and performance. Monitor the tool wear and change the tool before it reaches the end of its life span.

C. Surface Quality and Roughness

Challenge: Aluminum machining can cause surface defects, such as scratches, burrs, and roughness, due to the material’s softness, ductility, and abrasive nature.
Solution: Use appropriate cutting parameters to control the surface quality, such as a low spindle speed, high feed rate, and appropriate tool geometry. Use a suitable coolant or lubricant to prevent chip adhesion, galling, or smearing. Use a finishing operation, such as sanding, buffing, or polishing, to enhance the surface finish further. Inspect the surface quality using an appropriate measurement tool, such as a profilometer or a surface roughness analyzer.

D. Workpiece Warpage

Challenge: Aluminum machining can cause workpiece warpage, deformation or flexure due to the material’s low rigidity, high thermal expansion, and machining-induced stress.
Solution: Use appropriate cutting parameters to minimize workpiece deformation, such as a moderate cutting speed, low depth of cut, and appropriate cooling method. Use a suitable workholding device and clamping method to secure the workpiece in place while minimizing deformation and vibration. Use appropriate machining techniques, such as trochoidal milling, to reduce the thermal load and stress on the workpiece. Monitor the workpiece deformation using an appropriate measurement tool, such as a dial indicator or a laser alignment tool.

VII. Applications of Aluminum Machining

Aluminum machining finds a variety of uses across many industries due to its lightweight, high strength-to-weight ratio, and excellent corrosion resistance. Here are some of the common applications of aluminum machining:

A. Aerospace Industry

The aerospace industry uses aluminum extensively for manufacturing aircraft components such as body panels, wings, landing gear, and engine parts. Aluminum’s lightweight nature, coupled with its strength and high stiffness-to-weight ratio, make it an ideal material for the aerospace sector. Machining aluminum parts allow for precision production of lightweight components that improve fuel efficiency, reduce emissions, and increase performance.

B. Automotive Industry

The automotive industry uses aluminum machining in a variety of applications, including body panels, engine blocks, brake components, and suspension parts. Machining aluminum allows for cost-effective mass production of lightweight components that offer improved fuel efficiency, lower emissions, and better handling and performance.

C. Electronic Industry

The electronic industry uses aluminum machining for producing a range of electronic components such as heat sinks, housings, and frames, due to its excellent heat dissipation and low electrical conductivity. Machining aluminum can produce precise parts with a smooth finish, which is critical for the performance and functionality of electronic devices.

D. Construction and Architecture

The construction and architecture industries use aluminum machining for producing structural components such as trusses, frames, and panels. Aluminum’s lightweight nature and corrosion resistance make it an ideal material for use in building facades, roofs, and other exposed areas where appearance and durability are important. Machining aluminum allows for the fabrication of precise and custom-designed components that meet specific architectural requirements.

Overall, aluminum machining delivers a wide range of benefits for various industries, including cost-effectiveness, precision, lightweight, strength, and corrosion resistance. As such, aluminum machining is likely to remain a crucial manufacturing process for many years to come.

VIII. Future of Aluminum Machining

The future of aluminum machining is bright, with emerging trends and technologies promising to transform the industry. Here are some of the trends and opportunities in aluminum machining:

A. Emerging Trends and Technologies

1.Additive manufacturing: Additive manufacturing techniques such as 3D printing can create complex aluminum parts with intricate geometries, reducing waste and lead times.

2.Industry 4.0: Industry 4.0 technologies such as IoT, AI, and data analytics can revolutionize aluminum machining by enabling real-time monitoring, predictive maintenance, and real-time optimization of machining parameters.

3.Smart machining: Smart machining technologies such as digital twins, advanced sensors, and real-time monitoring can improve the efficiency, productivity, and quality of aluminum machining, reducing costs and lead times.

B. Opportunities and Challenges

1.Lightweighting: The demand for lightweight, high-strength aluminum components is likely to increase in the future, creating opportunities for aluminum machining in the automotive and aerospace industries.

2.Sustainability: The push towards sustainability and environmental protection is likely to place greater emphasis on reducing energy consumption, waste, and emissions in aluminum machining.

3.Globalization: The globalization of the manufacturing industry is likely to create new opportunities for aluminum machining in emerging markets, driving demand for high-quality and cost-effective machining services.

C. Sustainability and Environmental Impact

Aluminum machining has traditionally been associated with high energy consumption, waste generation, and environmental impact. However, emerging technologies and practices are likely to mitigate these impacts, such as:

1.Recycling: Aluminum is highly recyclable, and new technologies such as closed-loop recycling and recovery can enable aluminum machining to operate in a more sustainable and environmentally friendly manner.

2.Low-emission processes: Emerging technologies such as cryogenic machining and dry machining can reduce the environmental impact of aluminum machining by reducing energy consumption, waste generation, and emissions.

3.Sustainable supply chains: Companies are increasingly adopting sustainable supply chain practices, such as responsible sourcing, lifecycle thinking, and circular economy principles, to promote sustainable and environmentally friendly aluminum machining.

In conclusion, the future of aluminum machining promises to be exciting, with emerging technologies and practices driving efficiency, quality, and sustainability. Opportunities and challenges abound, with potential to enhance the role of aluminum machining in a range of industries while mitigating environmental impact.

IX. Conclusion

Aluminum machining is a critical process in many industries due to aluminum’s lightweight, high strength-to-weight ratio, and excellent corrosion resistance. In this article, we have explored the key aspects of aluminum machining, including the tools and equipment used, tips for successful machining, challenges and solutions, applications, and the future of the industry. Here are some key points to recap:

Overall, aluminum machining is a complex and vital process that requires careful planning, execution, and continuous improvement. To succeed in aluminum machining, manufacturers must stay up-to-date with emerging trends and technologies, adopt best practices, and focus on efficiency, productivity, and sustainability.
